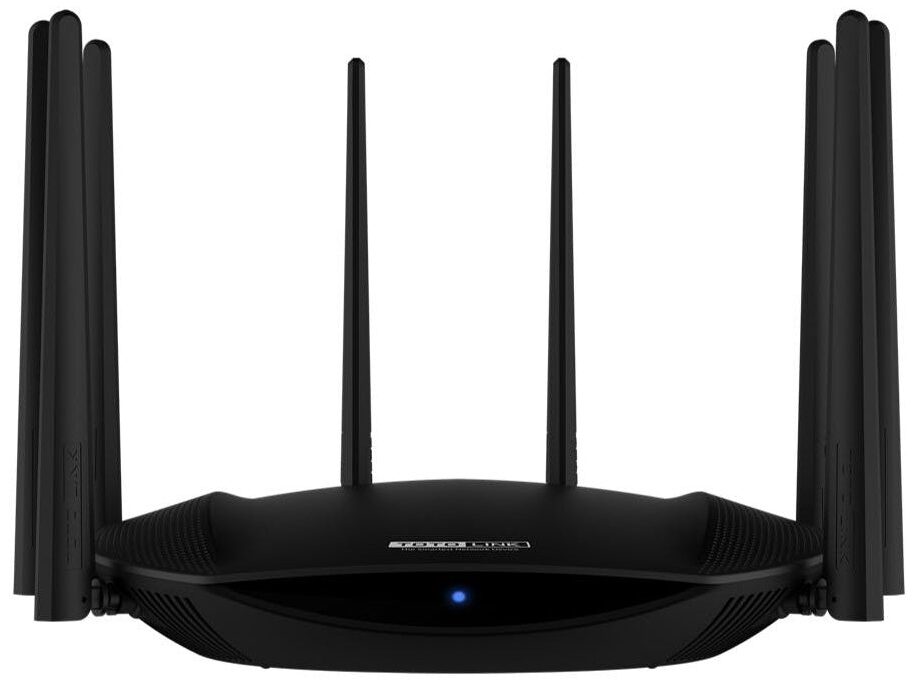

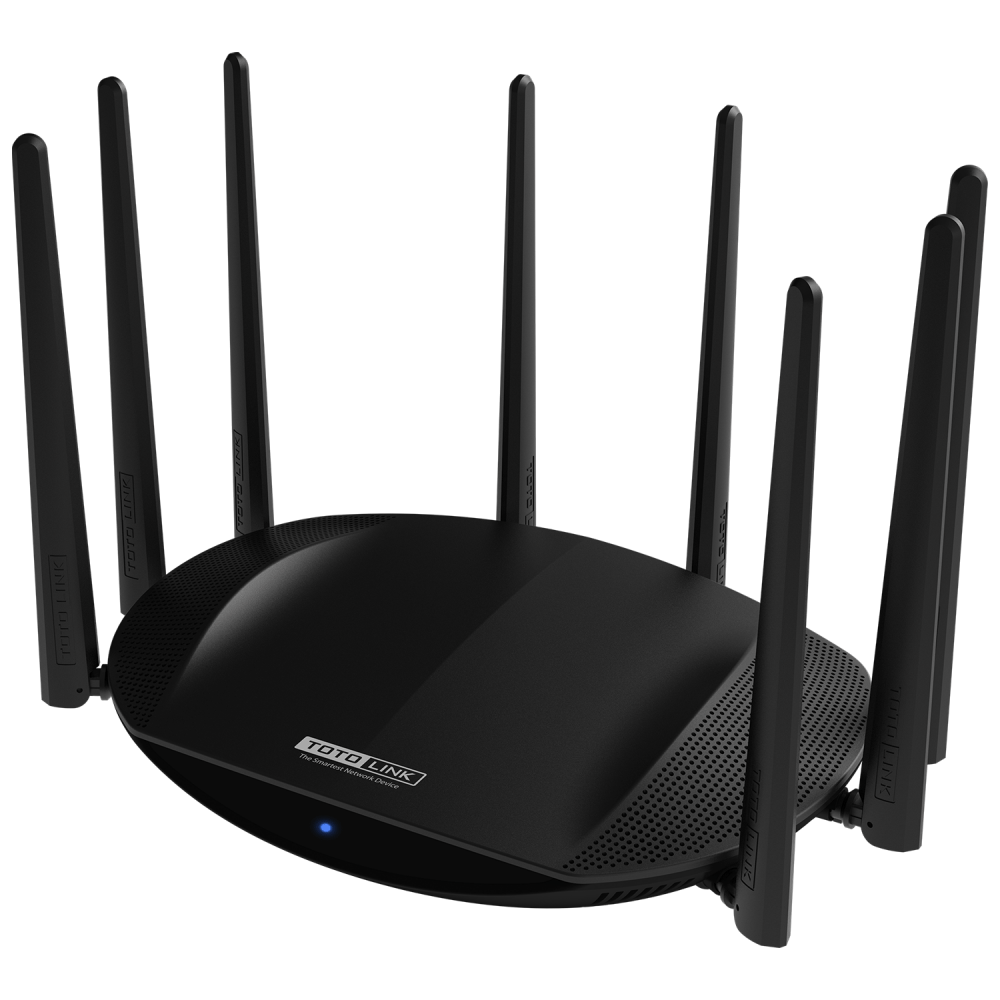

TOTOLINK A7000R AC2600 WIRELESS DUAL BAND GIGABIT ROUTER


Frequenza di lavoro : Dual Band (2.4GHz, 5GHz)
Numero di porte LAN : 4x [10/100/1000M (RJ45)]
Numero di porte WAN : 1x 10/100/1000BaseTX (RJ45)
Standard LAN : Gigabit Ethernet 10/100/1000 Mb/s
Standard wireless : IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Velocita massima di trasmissione wireless : 2600 Mb/s
Antenne staccabili : No
Gestione : Attraverso un browser web
Guadagno dell’antenna : Meno di 10 dBi
Il tipo di alimentazione del dispositivo : Alimentatore
Modem incorporato : Manca
Modo di uso : Indoor
Sicurezza WiFi : WEP, WPA-PSK, WPA-PSK/WPA2-PSK, WPA/WPA2
Tipo di antenna : Esterno
Tipo di casetto : Desktop, Plastica
Tipo di dispositivo : Router wireless
Tipo MIMO : MU-MIMO 2×2



HARDWARE FEATURES

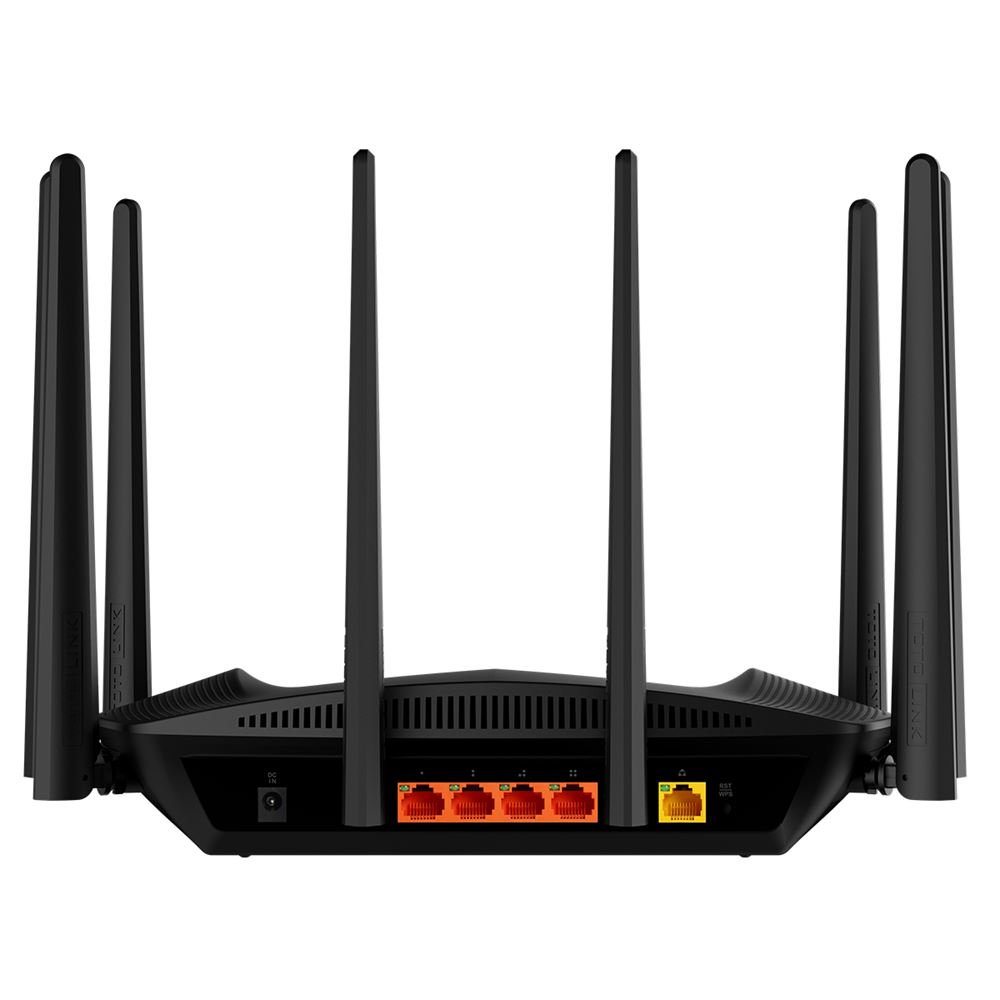

Interface 4 * 1000Mbps LAN Ports
1 * 1000Mbps WAN Port
Power Supply 12 VDC / 1.5A
Button 1 * RST/WPS Button
LED Indicator 1 * SYSTEM LED
Antenna 4 * 5dBi fixed antennas (2.4G), 4 * 5dBi fixed antennas (5G)
Dimensions (L x W x H) 273.5*182*60.5MM
WIRELESS FEATURES
Standards IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
RF Frequency 2.4GHz/5GHz
Data Rate 2.4GHz: Up to 800Mbps
5GHz: Up to 1732Mbps
EIRP 2.4GHz < 22dBm
5GHz < 20dBm
Wireless Security 64/128-bit WEP, WPA, and WPA2
Reception Sensitivity 2.4G:11b 11M:-81dBm@8% PER
11g 54M:-68dBm@10% PER
11n HT20 MCS7:-65dBm@10% PER
HT40 MCS7:-62dBm@10% PER
5G: 11a 54M:-68dBm@10% PER
11n HT20 MCS7:-65dBm@10% PER
HT40 MCS7:-62dBm@10% PER
11ac VHT80 MCS9:-51dBm@10% PER

SOFTWARE FEATURES
Operation Mode Wireless ISP Client Router
Repeater (Range Extender)
Router
Bridge with AP
WAN Type DHCP/Static IP/PPPoE/PPTP/L2TP
Wireless Functions Multiple SSIDs, MAC Authentication, Universal Repeater, WDS, WPS
Schedule Reboot Schedule, Wireless Schedule
Firewall MAC Filtering, IP Filtering, Port Filtering, URL Filtering Port Forwarding, DMZ
Management QoS, DDNS, DoS, WMM, Access Control, and more.
Package Contents A7000R Wireless Router *1
Power Adapter *1
Ethernet Cable *1
Quick Installation Guide *1
Environment Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
